| Model No. |
Outer dimensions |
Basic load rating |
Detail specifications |
CAD |

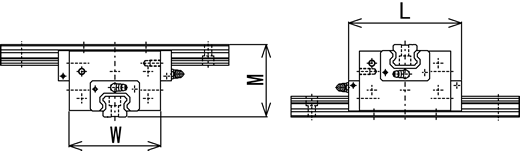

Dimensional drawing |
| Radial |
2D (DXF) |
3D |
Height
M |
Width
W |
Length
L |
Dynamic
rating
C |
Static
rating
C0 |
| mm |
mm |
mm |
kN |
kN |
| SCR 15S |
47 |
48 |
64.4 |
14.2 |
24.2 |
 |
 |
 |
 |
| SCR 20S |
57 |
59 |
79 |
22.3 |
38.4 |
|
|
| SCR 20 |
57 |
78 |
98 |
28.1 |
50.3 |
|
|
| SCR 25 |
70 |
88 |
109 |
36.8 |
64.7 |
|
|
| SCR 30 |
82 |
105 |
131 |
54.2 |
88.8 |
|
|
| SCR 35 |
95 |
123 |
152 |
72.9 |
127 |
|
|
| SCR 45 |
118 |
140 |
174 |
100 |
166 |
|
|
| SCR 65 |
180 |
226 |
272 |
253 |
408 |
|
|
|
