Limited Stroke Model EPF

The limited stroke minimizes fluctuation in rolling resistance, making this guide ideal for locations requiring smooth motion on short strokes.

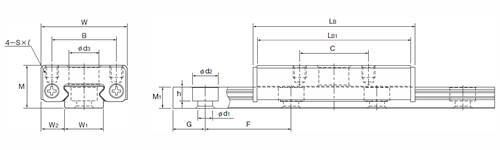

Dimensional drawing
Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
EPF 7M 8 17 31.6 0.90 1.60
EPF 9M 10 20 37.8 1.00 1.87
EPF 12M 13 27 43.7 2.26 3.71
EPF 15M 16 32 56.5 3.71 5.88



Description
* Descriptions are pdf files.
