SVS-LC

The LM block has the same cross-sectional shape as models SVS-C, but has a longer overall LM block length (L) and a greater rated load.

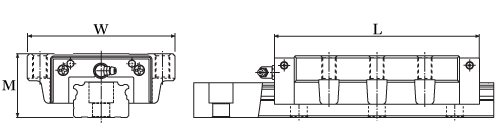

Dimensional drawing
Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
SVS 25LC 31 72 102 43.7 66.1
SVS 30LC 38 90 120.5 64.4 95.2
SVS 35LC 44 100 135 86.1 123
SVS 45LC 52 120 171 123 178
SVS 55LC 63 140 200.5 164 237
SVS 65LC 75 170 246 260 370



Description
* Descriptions are pdf files
