SHS-LC

The LM block has the same cross-sectional shape as model SHS-C, but has a longer overall LM block length (L) and a greater rated load.

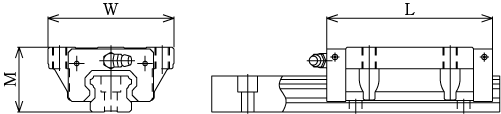

Dimensional drawing

Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
SHS 15LC 24 47 79.4 17.2 31.9
SHS 20LC 30 63 98 28.1 50.3
SHS 25LC 36 70 109 36.8 64.7
SHS 30LC 42 90 131 54.2 88.8
SHS 35LC 48 100 152 72.9 127
SHS 45LC 60 120 174 100 166
SHS 55LC 70 140 213 161 259
SHS 65LC 90 170 272 253 408
