SHS-V

With this type, the LM block has a smaller width (W) and tapped holes.
Used in places where the space for table width is limited.

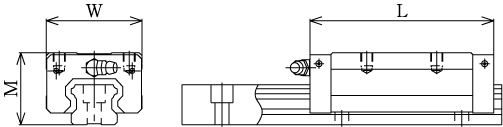

Dimensional drawing



Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
SHS 15V 24 34 64.4 14.2 24.2
SHS 20V 30 44 79 22.3 38.4
SHS 25V 36 48 92 31.7 52.4
SHS 30V 42 60 106 44.8 66.6
SHS 35V 48 70 122 62.3 96.6
SHS 45V 60 86 140 82.8 126
SHS 55V 70 100 171 128 197
SHS 65V 90 126 221 205 320



Description
* Descriptions are pdf files.
