Since the LM block can be mounted from the bottom, this type is optimal for applications where through holes for mounting bolts cannot be drilled on the table.

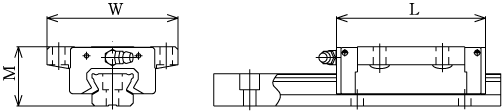

Dimensional drawing



Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M
Width
W
Length
L
Dynamic
rating
C
Static
rating
C0
mm mm mm kN kN
SSR 15XTB 24 52 56.9 14.7 16.5
SSR 20XTB 28 59 66.5 19.6 23.4
SSR 25XTB 33 73 83 31.5 36.4
