SHS-R

The LM block has a smaller width (W) and the mounting holes are tapped.
It succeeds the height dimension of full-ball type LM Guide HSR-R.

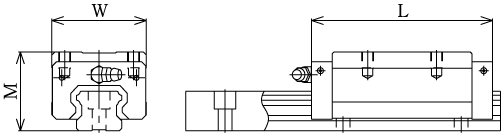

Dimensional drawing








Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
SHS 15R 28 34 64.4 14.2 24.2
SHS 25R 40 48 92 31.7 52.4
SHS 30R 45 60 106 44.8 66.6
SHS 35R 55 70 122 62.3 96.6
SHS 45R 70 86 140 82.8 126
SHS 55R 80 100 171 128 197




Description
* Descriptions are pdf files.
