The flange of the LM block has tapped holes. Can be mounted from the top or the bottom. Can also be used in places where the table cannot have through holes for mounting bolts.

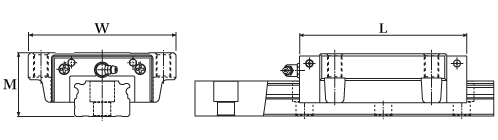

Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing Radial 2D (DXF) 3D Height M Width W Length L Dynamic rating C Static rating C0 mm mm mm kN kN SVR 25C 31 72 82.8 48.2 68.1 SVR 30C 38 90 98 67.9 91.6 SVR 35C 44 100 109.5 89.6 116 SVR 45C 52 120 138.2 138 186 SVR 55C 63 140 163.3 177 235 SVR 65C 75 170 186 271 352
