SVR-LR

The LM block has the same cross-sectional shape as models SVR-R, but has a longer overall LM block length (L) and a greater rated load.

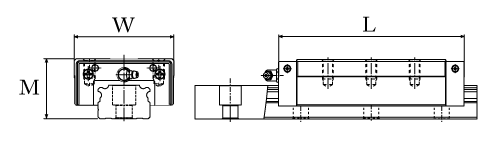

Dimensional drawing
Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
SVR 25LR 31 50 102 57 86.3
SVR 30LR 38 60 120.5 84 124
SVR 35LR 44 70 135 112 160
SVR 45LR 52 86 171 161 233
SVR 55LR 63 100 200.5 214 309
SVR 65LR 75 126 246 339 484
