SVR-LC

The LM block has the same cross-sectional shape as models SVR-C, but has a longer overall LM block length (L) and a greater rated load.

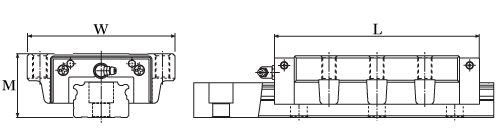

Dimensional drawing
Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
SVR 25LC 31 72 102 57 86.3
SVR 30LC 38 90 120.5 84 124
SVR 35LC 44 100 135 112 160
SVR 45LC 52 120 171 161 233
SVR 55LC 63 140 200.5 214 309
SVR 65LC 75 170 246 339 484



Description
* Descriptions are pdf files.
