SVR-LCH

The LM block has the same cross-sectional shape as models SVR-CH, but has a longer overall LM block length (L) and a greater rated load.

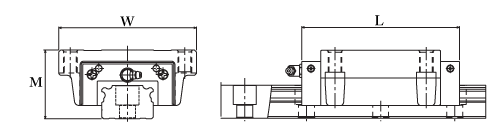

Dimensional drawing
Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M		 Width
W		 Length
L		 Dynamic
rating
C		 Static
rating
C0
mm mm mm kN kN
SVR 35LCH 48 100 135 112 160
SVR 45LCH 60 120 171 161 233
SVR 55LCH 70 140 200.5 214 309



Description
* Descriptions are pdf files
