The LM block has the same cross-sectional shape as models SVR-RH, but has a longer overall LM block length (L) and a greater rated load.

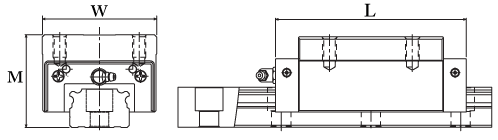

Dimensional drawing
Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M
Width
W
Length
L
Dynamic
rating
C
Static
rating
C0
mm mm mm kN kN
SVR 35LRH 55 70 135 112 160
SVR 45LRH 70 86 171 161 233
SVR 55LRH 80 100 200.5 214 309
