The dimensions are almost the same as that of LM Guide models SHS and HSR, and the LM block has tapped holes.

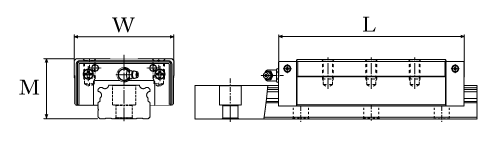

Dimensional drawing
Model No. Outer dimensions Basic load rating Detail specifications CAD Dimensional drawing
Radial 2D (DXF) 3D
Height
M
Width
W
Length
L
Dynamic
rating
C
Static
rating
C0
mm mm mm kN kN
SVR 35RH 55 70 109.5 89.6 116
SVR 45RH 70 86 138.2 138 186
SVR 55RH 80 100 163.3 177 235



Description
* Descriptions are pdf files.
